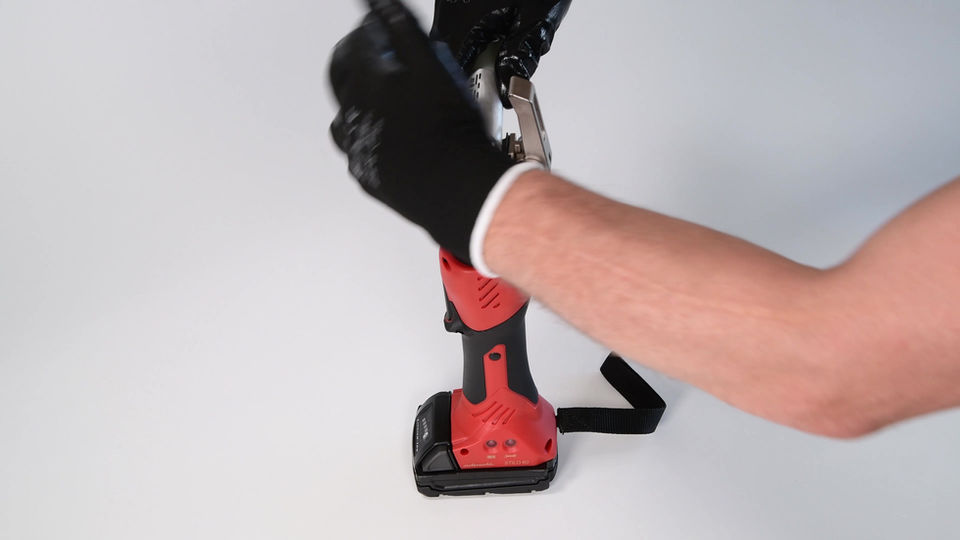

STILO60 | Battery operated hydraulic crimping tool | 60 kN | max. 300 mm2

Cross section: 6 - 300 mm2

Crimping force: 60 kN

Max. stroke: 17 mm

Operating pressure: 700 bar

Crimping Dies: SERIES 60

Technical characteristics:

• Lightweight compact and robust design
• Rotatable press head
• Fast feed thanks to the triple axial piston pump
• Fast tool return to the start position thanks to the patented return valve
• Automatic pressure limiting and monitoring by means of pressure sensor
• Engine shutdown and automatic return after completion of pressing
• Manual return can be done anytime with the push of the release button
• Soft start and quick stop increase the lifespan
• Ergonomic well balanced 2-component handle
• Automatic power saving mode after approx. 5 minutes
• All working cycles and error messages stored on internal memory
• Reading the reports of all cycles with pressure curves and error messages via USB
• Software updates via USB
• Intelligent electronic module with 2 multifunction LEDs (3-color LEDs)
• Service indicator and service control (integrated service management)
• First programmed service after 20.000 cycles
• No aborted press cycles due to ongoing monitoring of residual battery charge
• Charge status display directly on the battery

Tool dimensions: 124 x 383 x 81 mm

Tool weight (incl. battery): 3,3 kg

Set equipment:

Test report

Battery-operated hydraulic crimping tool

Battery 18 V/ 2,0 Ah Li-Ion (RA20)

Battery charger (LG8)

USB-cable

Software (CD)

Rigid plastic case

560 x 357 x 118 mm
