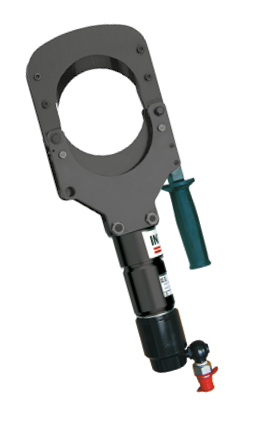

PS120 | Hydraulic cutting head | Ø 120 mm | Al, Cu, HD Steel Wire Armoured
SKU PS120
Max. cable diameter: 120 mm
Application range: Aluminium, Copper, armoured cables
Cutting force: 100 kN
The unit must be operated through max. 700 bar hydraulic pump (suggested operating pressure 700 bar/70 MPa)
Technical characteristics:
- Light and compact structure
- Open cutting head with guide blade
- Easy handling by open cutting head
- Quick male connector with automatic lock system and dust cap
Tool dimensions: 239 x 508 x 88 mm
Tool weight: 8,2 kg

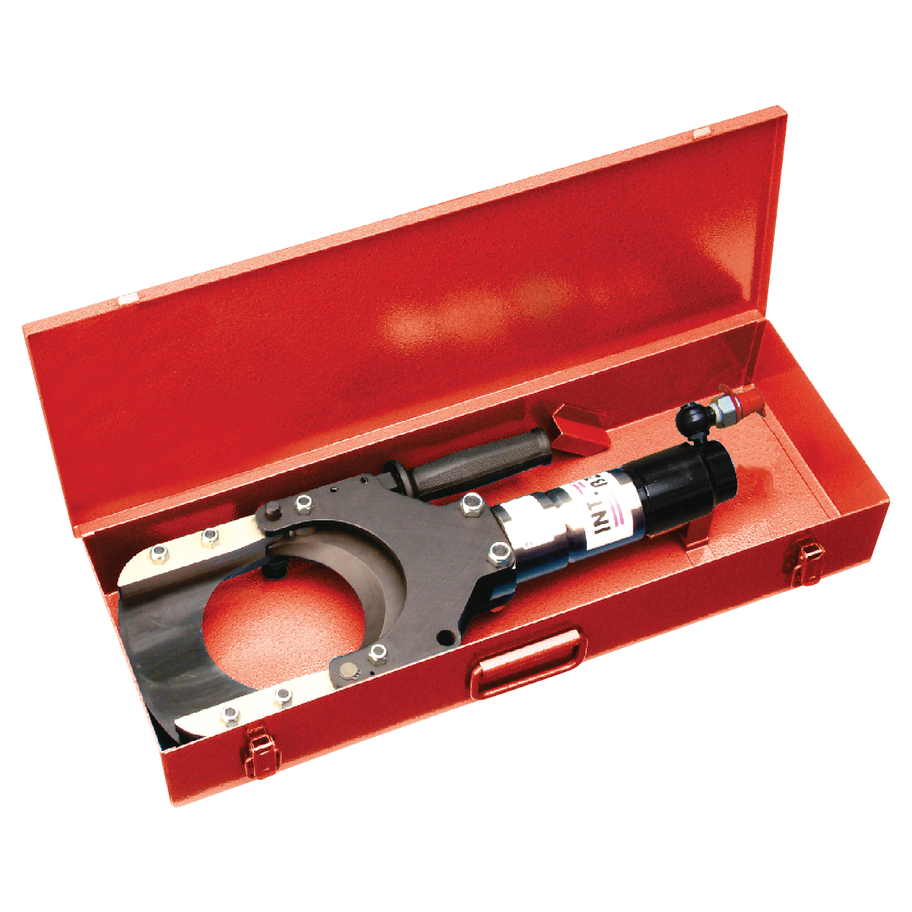

Set equipment:
Hydraulic cutting head
Metal case
610 x 400 x 140 mm
