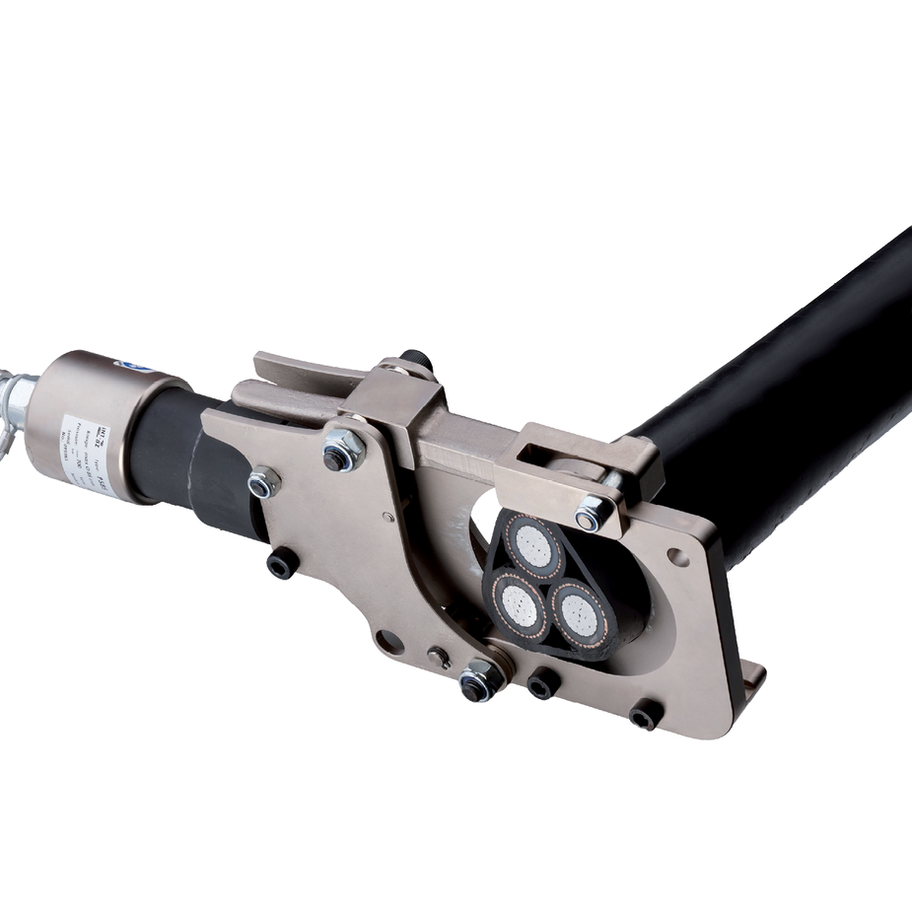

PS85 | Hydraulic cutting head | Ø 85 mm | Al, Cu, L. Armoured
SKU PS85
Max. cable diameter: 85 mm
Application range: Aluminium, Copper
Cutting force: 70 kN
The unit must be operated through max. 700 bar hydraulic pump (suggested operating pressure 700 bar/70 MPa)
Technical characteristics:
- Light and compact structure
- Cutting head with snap closure and blade guide
- Quick male connector with automatic lock system and dust cap
Tool dimensions: 135 x 391 x 70 mm
Tool weight: 4,5 kg
Set equipment:
Hydraulic cutting head
Plastic case
465 x 370 x 110 mm
